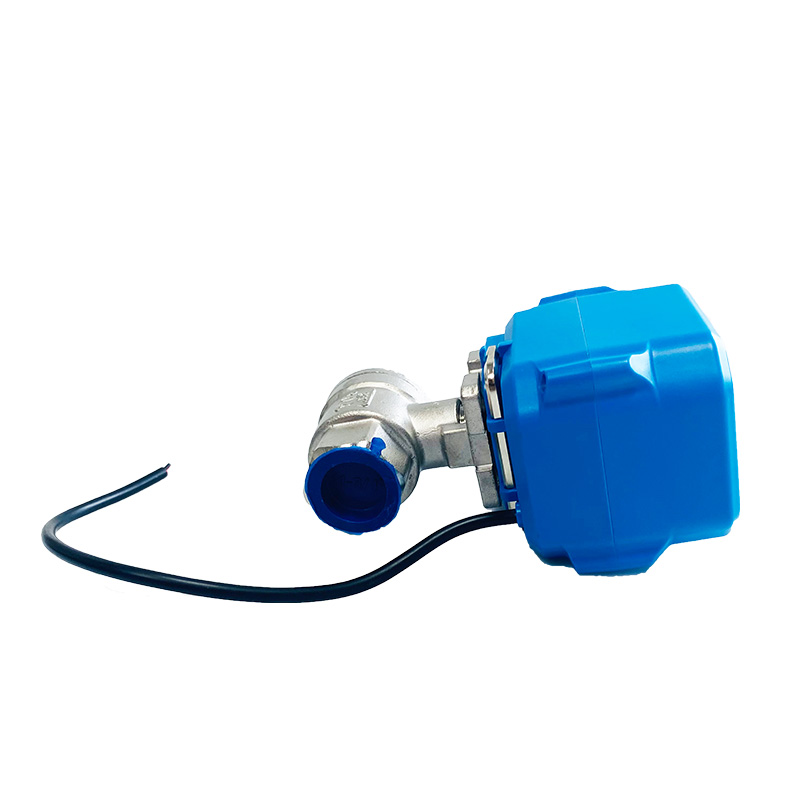

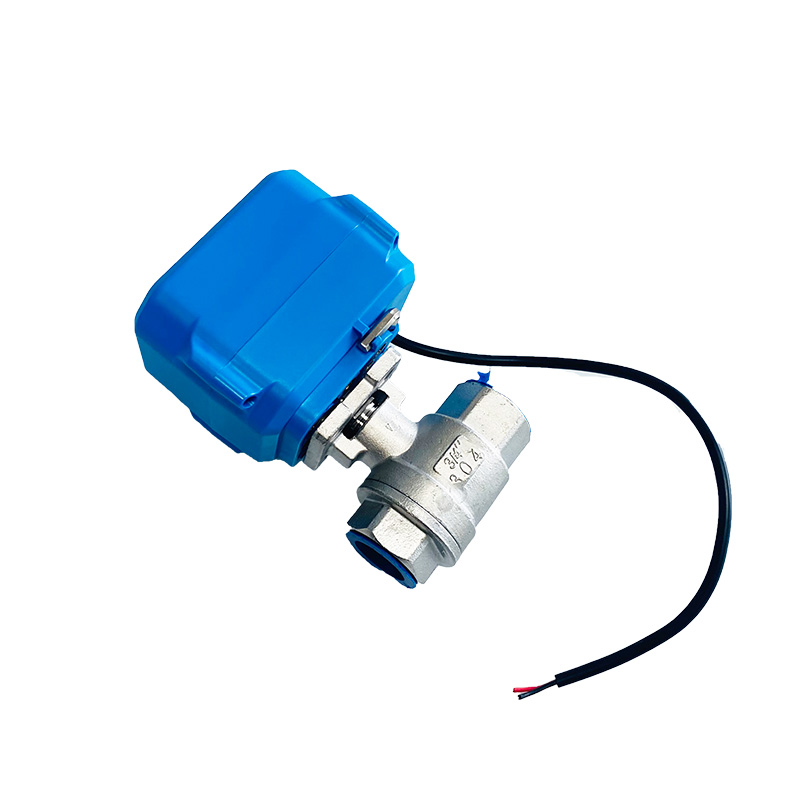

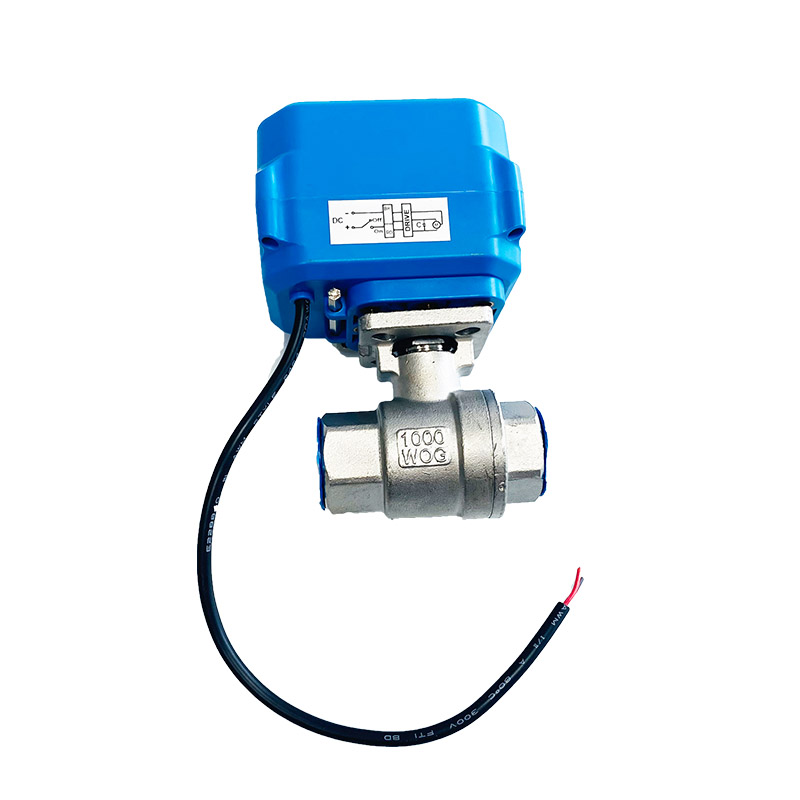

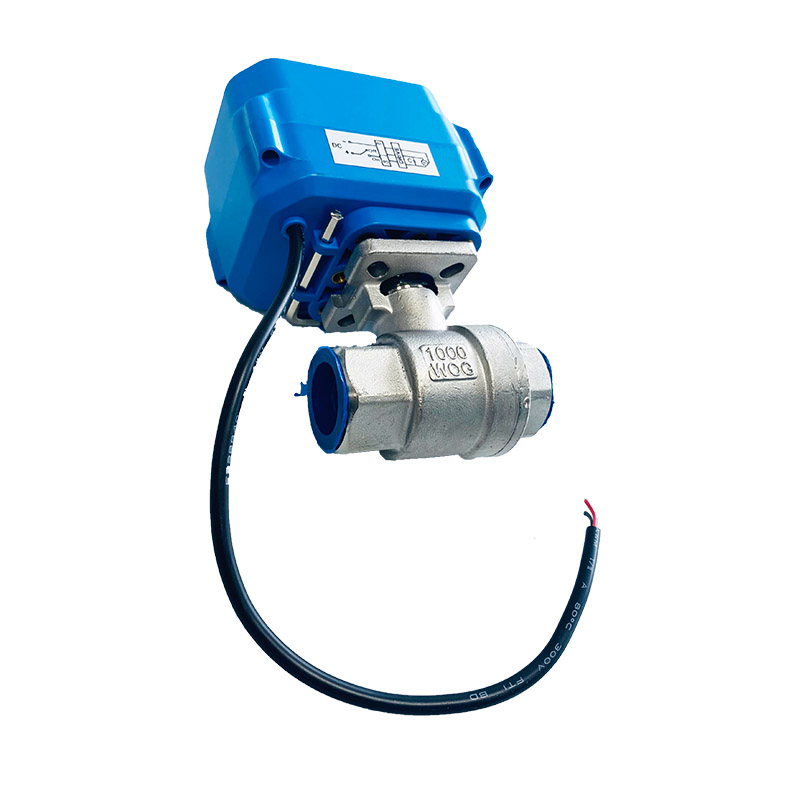

1/2 stainless steel electric ball valve 2 way ball valve

1/2" stainless steel  electric ball valve 2 way ball valve

Production Profiles :

Electric ball valves are mainly used in central air-conditioning cold and hot water systems to accurately control the flow of cold and hot media according to actual needs without causing drastic changes in temperature and achieve the purpose of real-time and precise control of room temperature. The control method is driven by a bidirectional motor, and the motor and the thermostat are connected through a common terminal, an open terminal, and a closed terminal. The thermostat continuously samples and processes on-site data, and sends out control signals to make the electric ball valve motor run or stop, control the opening and closing degree of the electric ball valve, and cold water or hot water enter the fan coil to provide air conditioning or heating for the room; when the room temperature reaches the temperature When the set value of the thermostat is set, the thermostat will cut off the power of the electric ball valve, so that the valve opening is in the best state, and the room temperature is always kept within the temperature range set by the thermostat.

 Stainless steel  electric ball valve 2 way ball valve product featues:

1. Good dustproof and waterproof function (IP65).

2. The temperature of the medium is not easily transmitted to the actuator.

3. The actuator is easy to disassemble and assemble:

4. The actuator can be installed after the equipment and pipeline are installed, which is more conducive to improving the installation efficiency.

5. Due to the eccentric structure of the actuator, the valve can be installed close to the wall.

6. The ball valve body with the driver removed can be opened and closed with ordinary tools.

7. The actuator can be assembled in two directions, which is easier for wiring and maintenance.

8. The closing pressure difference is large and the closing is tight.

9. Straight-through water flow, no slag blocking.

10. The valve opens flexibly, which can effectively prevent water hammer.

11. After the valve is in place, the motor does bear any force,and the life of the motor is longer.
