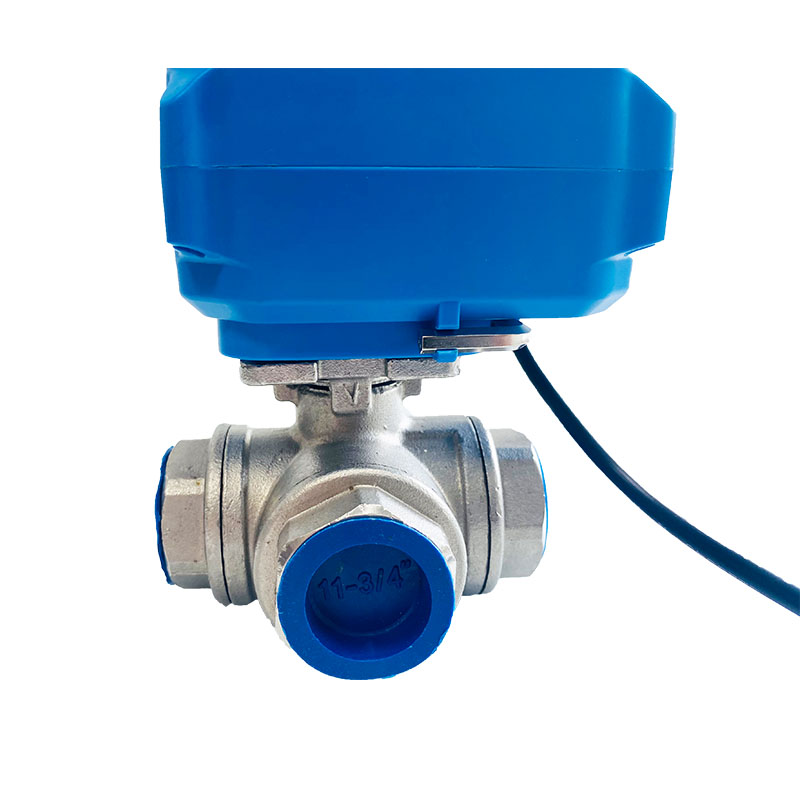

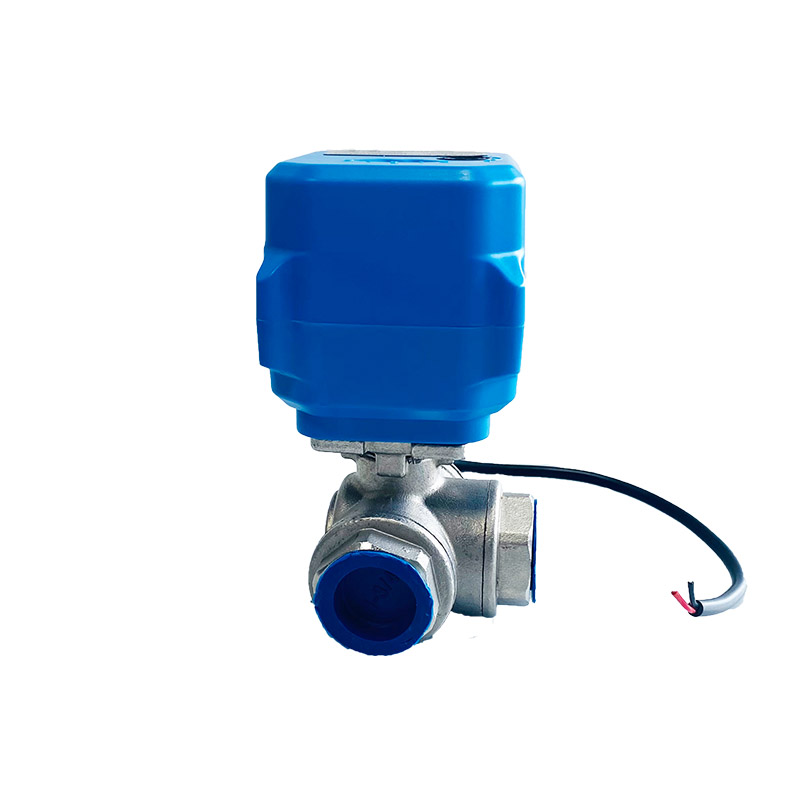

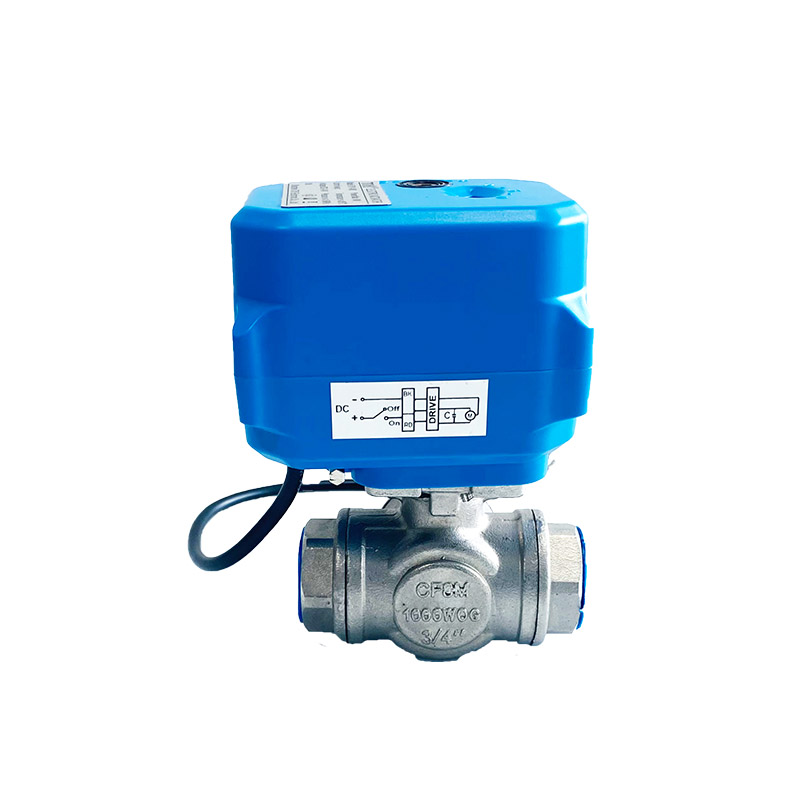

L Type12V stainless steel electric actuator ball valve

L Type12V stainless steel electric actuator ball valve product feature

1. Good dustproof and waterproof function (IP65).

2. The temperature of the medium is not easily transmitted to the actuator.

3. The actuator is easy to disassemble and assemble:

4. The actuator can be installed after the equipment and pipeline are installed, which is more conducive to improving the installation efficiency.

5. Due to the eccentric structure of the actuator, the valve can be installed close to the wall.

6. The ball valve body with the driver removed can be opened and closed with ordinary tools.

The actuator can be assembled in two directions, which is easier for wiring and maintenance.

8. The closing pressure difference is large and the closing is tight.

9. Straight-through water flow, no slag blocking.

10. The valve opens flexibly, which can effectively prevent water hammer.

11. After the valve is in place, the motor does not bear any force, and the life of the motor is longer

 Stainless steel electric actuator ball valves

• Nominal pressure: 1.0MPa

• Closing differential pressure: 1.0MPa

Medium: hot and cold water, glycol aqueous solution within 60%

Medium temperature: 1 • C - 95 ° C (liquid (Control signal: ON / OFF, Special can be customized.

Power supply: AC220V, 50 / 60Hz, 50 / 60Hz, AC24V, AC110-265V (gener al voltage can be customized) DC24V, (DO6-30V can be customized)

• Power consumption: 10W

• Operation time: 7-10 seconds (quickly customizable)

• Line Stroke: angular stroke 90 degrees 180 degrees can be customizable

Torsion Torque: 8Nm

Protection grade: IP65

Structural form: two-way, three-way side outlet L-type and T-type

• Service life: no less than 50000 times
