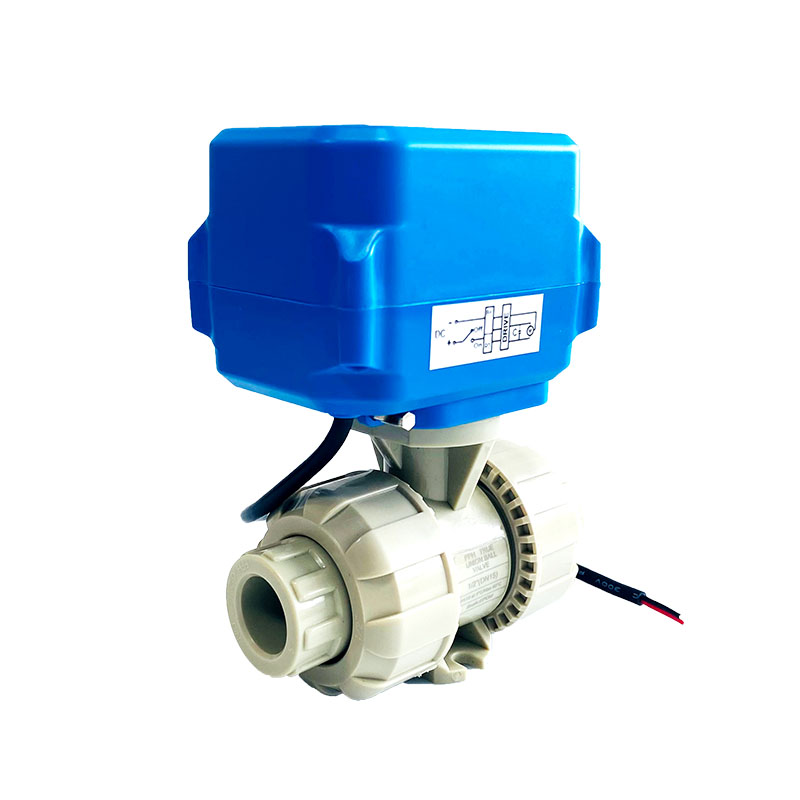

DC12V/DC24V AC220V PVC /UPVC 2 way electric ball valve for water
- Body Material: UPVC
- Max. Pressure: 10bar
- Liquid Temperature: -0 to 95℃
- Suitable Medium: Water
- Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
- Open/Close Times: ≤5S

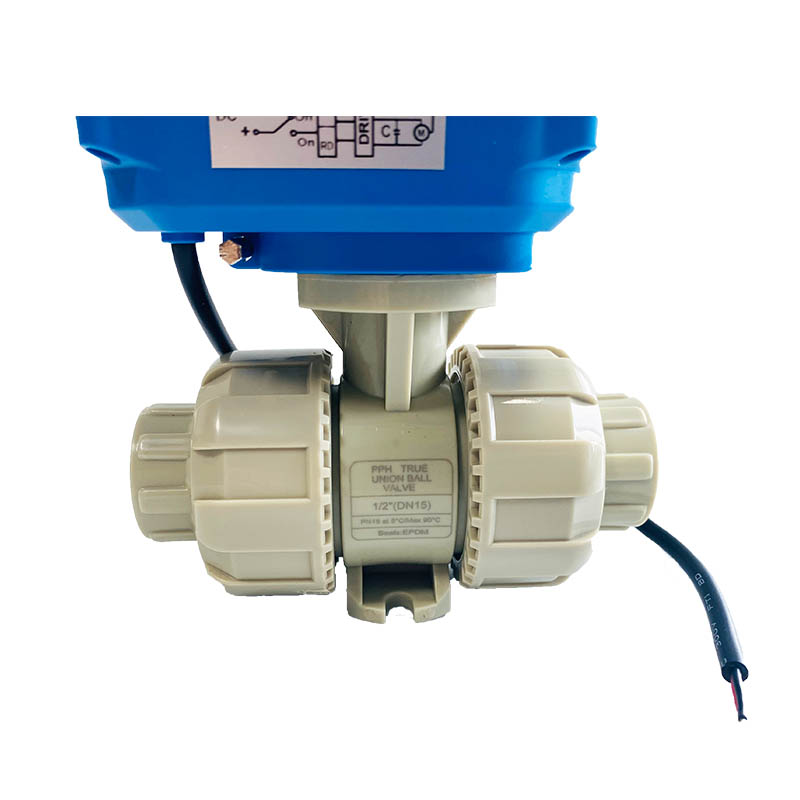

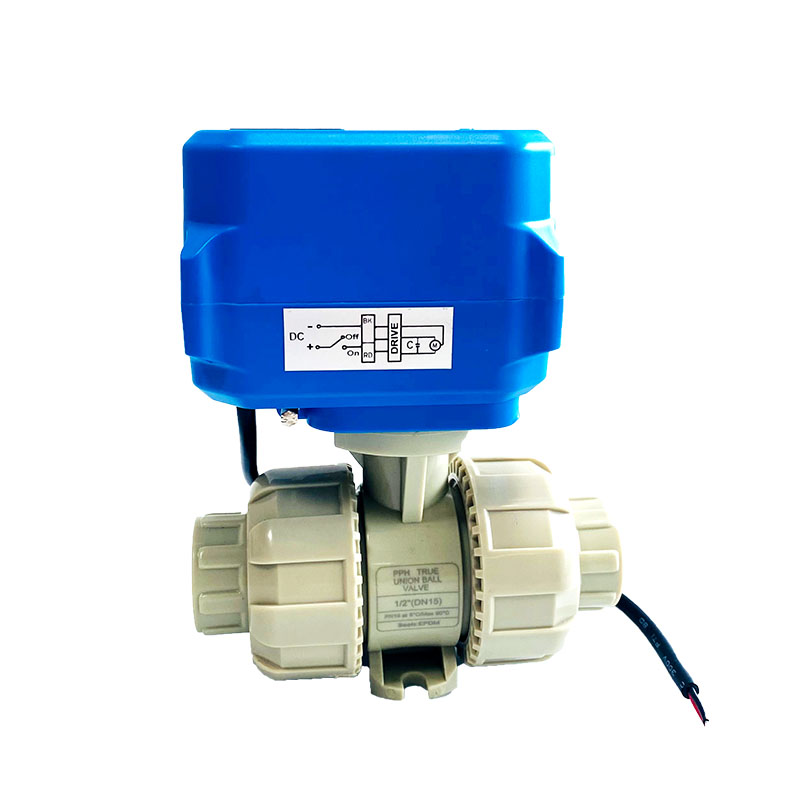

DC12V/DC24V AC220V PVC /UPVC 2 way electric ball valve for water
• Profile:
TM series miniature electric valve, the actuator shell is made of industrial-grade ABS material, compact size, can be used for small equipment; using high-precision all-metal gears, switching accurately, high torque, long life; a variety of control methods can be selected to accept remote control signals, and can be in place signals passed to the intelligent detection unit to achieve real-time monitoring.
| Model | TMO1 | TMO2 | TMO3 | TMO4 | TMO1S |
| Torque | 6NM | ||||
| Nominal Pressure | 1.0Mpa | ||||
| Differential Closing Pressure : | 1.0Mpa | ||||
| Ambient Temperature； | (-20C°-60C°) | ||||
| Working Current : | <1200MA | ||||
| Medium : | Cold Water or 60% or less of ethanol solution | ||||
| Medium Temperature : | 0C°-95C°(Liquid) | ||||
| Control Signal: | ON/OFF special customizable | ||||
| Power Supply : | AC/DC9-36V(AC110-265V,50/60HZ ,OC5-36V customizable | ||||
| Power Consumption: | <10W (customizable ) | ||||
| Running Time: | <12S (fast customizable ) | ||||
| Protections Class: | IP65 | ||||
| Structure : | 2 way ,3way （T or L type ) | ||||
| Actuator | Ball Valve | ||
| Actuator Material | Industrial grade ABS |
Body/Ball Material | SS304 /SS316/BRASS / PVC/UPVC |
Rated voltage |
DC5-35V , AC/DC9-35V , 110-265V Customerizable |

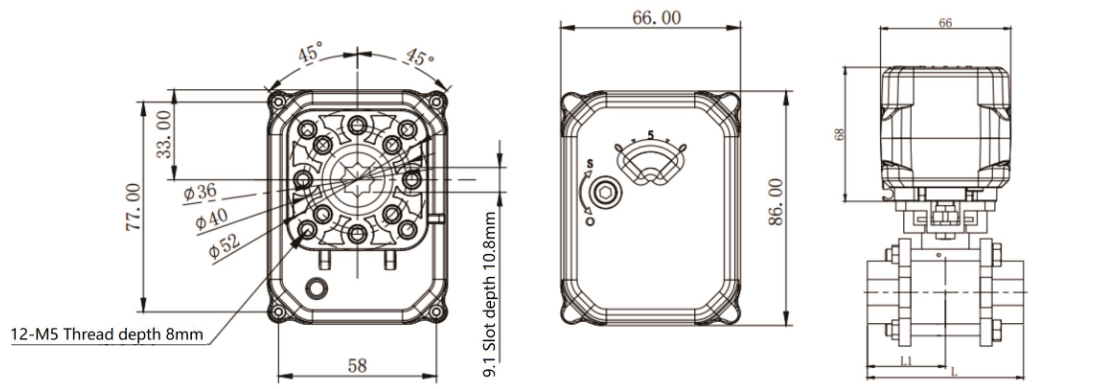

Body Size | G1/2,G3/4,G1 |

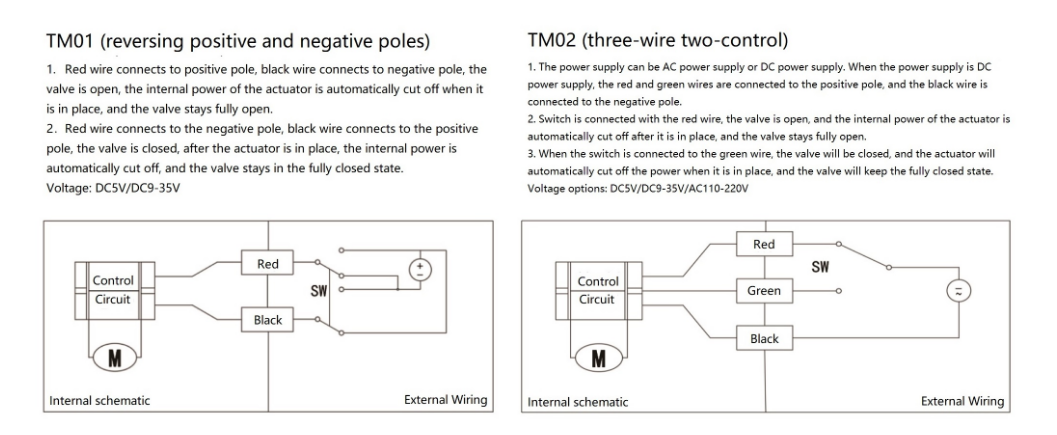

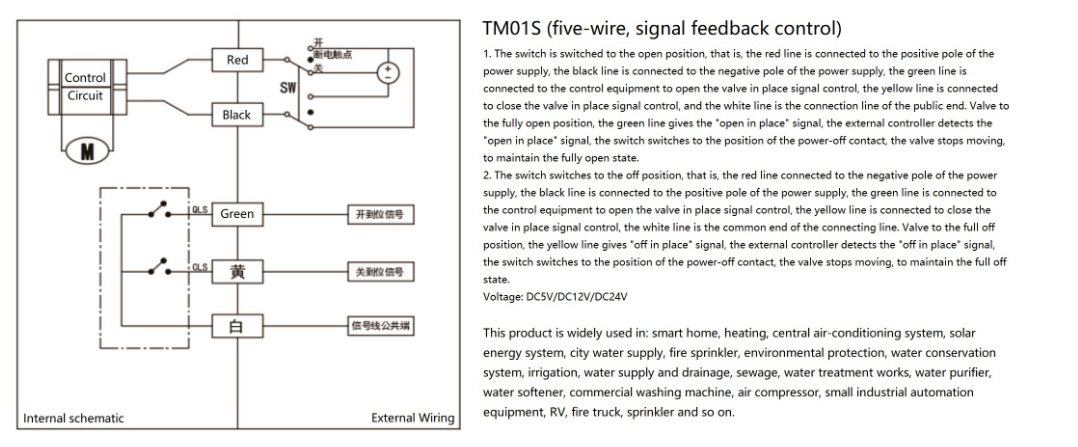

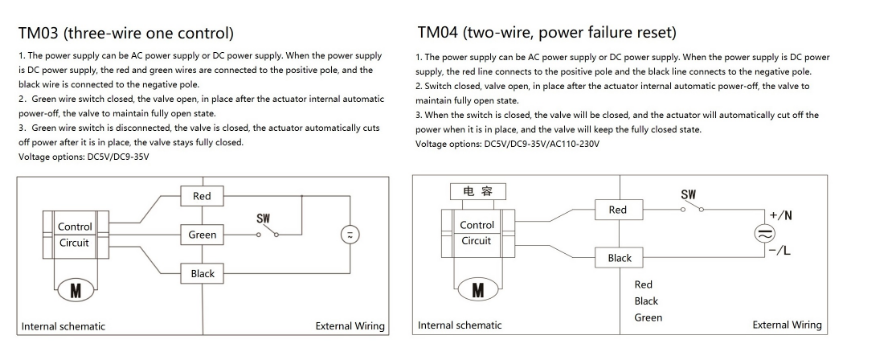

Control method |
TMO1, TM02, TM03, TM04, TM01S | Valve Seat | PTFE |
| Working current | <1200mA | Seal Material | EPDM/FKM |
| Open/Close times | <12S | Max Working pressure | 1Mpa |
Service life |
5-8 Thousands of times | Flow Medium | water ,air etc |
| Assistant | have it | Flow Temperature | (0℃-95℃) |
Ambient temperature |
(-20℃-60℃) | / | / |
The electric PVC/UPVC ball valve only needs to rotate 90 degrees and use a small rotational torque to close tightly.The inner cavity of the valve body provides a straight flow path with little resistance for the medium.
Electric PVC /UPVC ball valve is a new type of valve that has been widely used in recent years. It has the following advantages:
1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.
2． It has simple structure, small size and light weight.
3． Tight and reliable, plastic is widely used as the sealing surface material of ball valves at present, with good sealing performance, and has also been widely used in vacuum systems.
4． It is easy to operate and opens and closes quickly. It only needs to be rotated 90° from fully open to fully closed, which is convenient for long-distance control.
5. It is easy to maintain. The ball valve has a simple structure and the sealing ring is generally movable, making it easy to disassemble and replace.
6. When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium. When the medium passes, it will not cause erosion of the valve sealing surface.
7.It has a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be applied from high vacuum to high pressure
