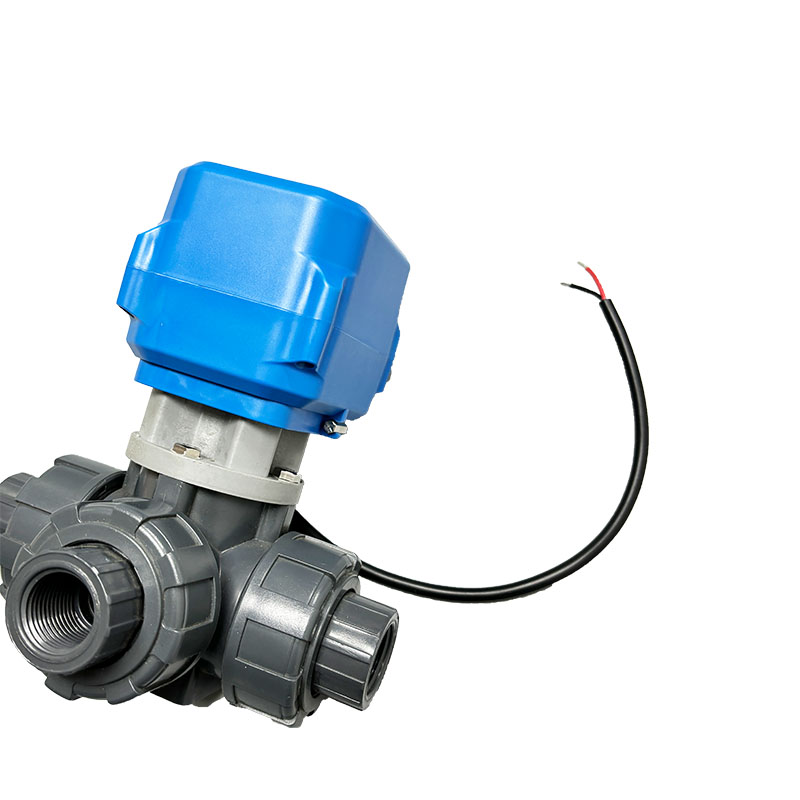

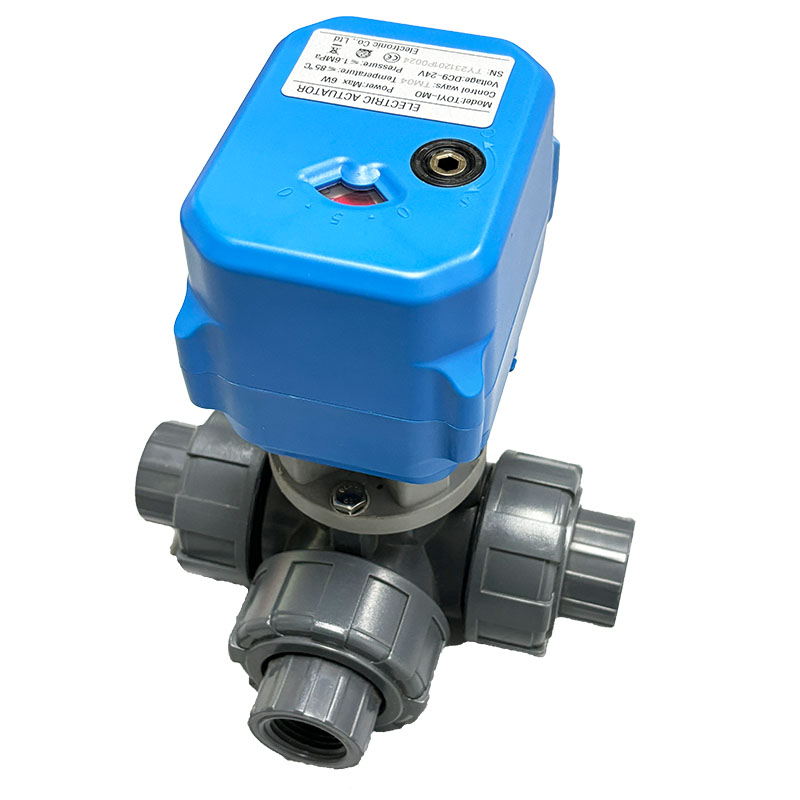

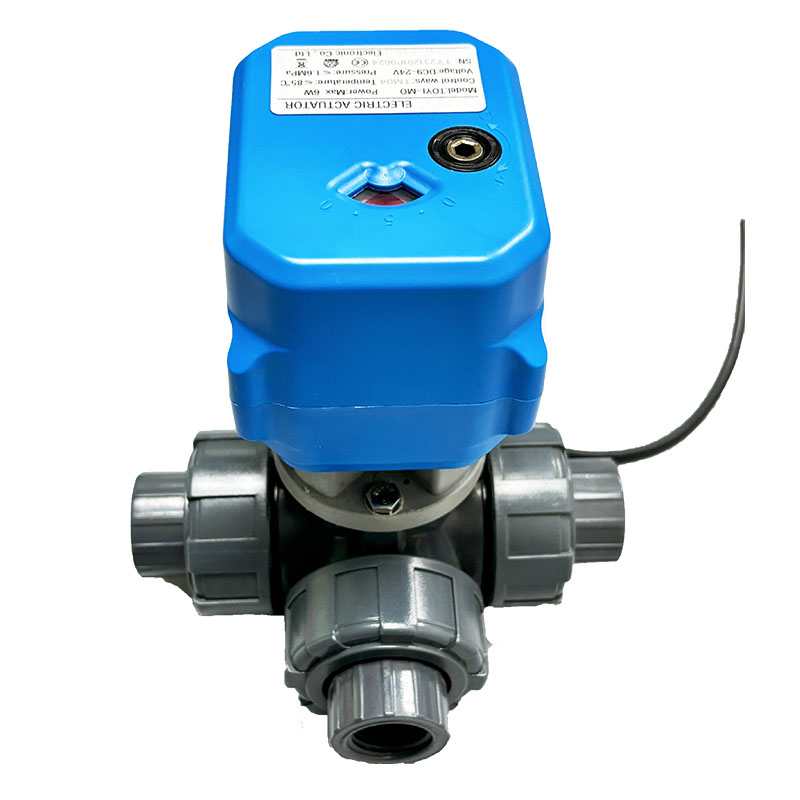

3 way mini electric ball valve PVC /UPVC ball valve

3 way mini electric ball valve PVC /UPVC ball valve , electric actuated pvc /upvc ball valve

3 Way Electric ball valves are mainly used in central air conditioning hot and cold water

The system accurately controls the flow of hot and cold media according to actual conditions.

The purpose needs to be achieved without causing drastic changes in temperature

Precisely control room temperature in real time. This control method is driven by a

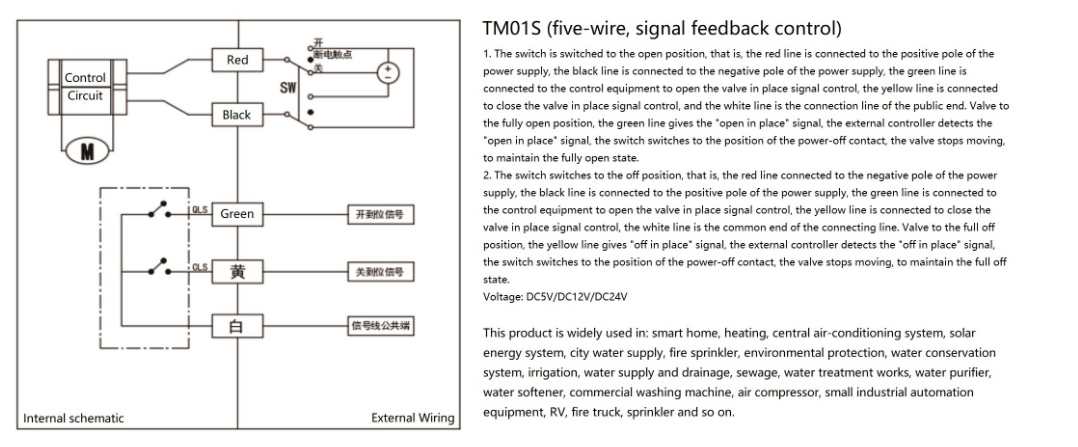

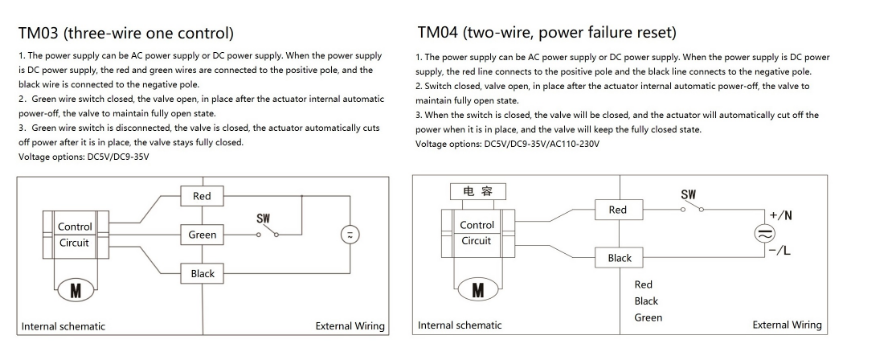

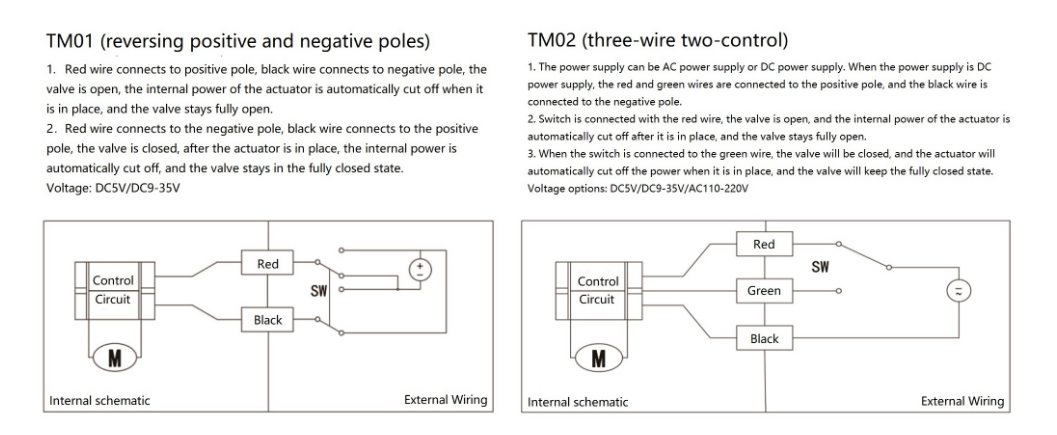

Bidirectional motor, the motor and the thermostat pass through a

Common terminal, open circuit terminal, closed circuit terminal. thermostat

Continuously samples and processes field data and issues control signals

Run or stop the electric ball valve motor to control the opening and closing degree

 Electric ball valve, cold or hot water enters the fan coil to provide air

Room air conditioning or heating; when room temperature reaches

Temperature When the thermostat setpoint is set, the thermostat will cut off

The power of the electric ball valve keeps the valve opening in the best state.

Room temperature always remains within the set temperature range.

3 way mini electric ball valve Product Features

1. Good dustproof and waterproof function (IP65).

2. The temperature of the medium is not easily transmitted to the actuator.

3. The actuator is easy to disassemble and assemble:

4. The actuator can be installed after the equipment and pipeline are installed, which is more

conducive to improving the installation efficiency.

5. Due to the eccentric structure of the actuator, the valve can be installed close to the wall.

6. The ball valve body with the driver removed can be opened and closed with ordinary tools.

The actuator can be assembled in two directions, which is easier for wiring and maintenance.

8. The closing pressure difference is large and the closing is tight.

9. Straight-through water flow, no slag blocking.

10. The valve opens flexibly, which can effectively prevent water hammer.

11. After the valve is in place, the motor does not bear any force, and the life of the motor is longer.
