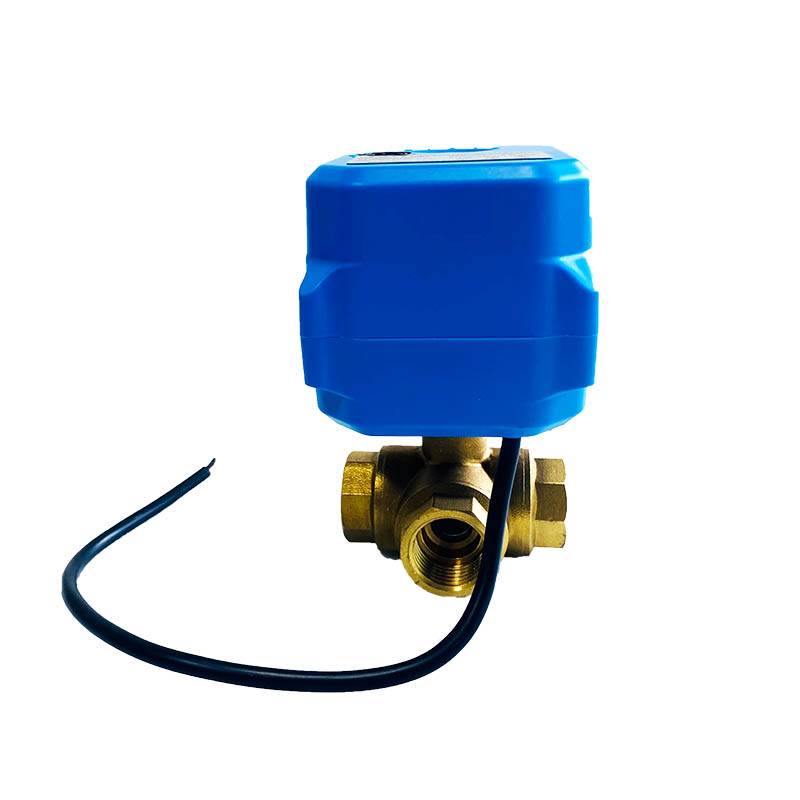

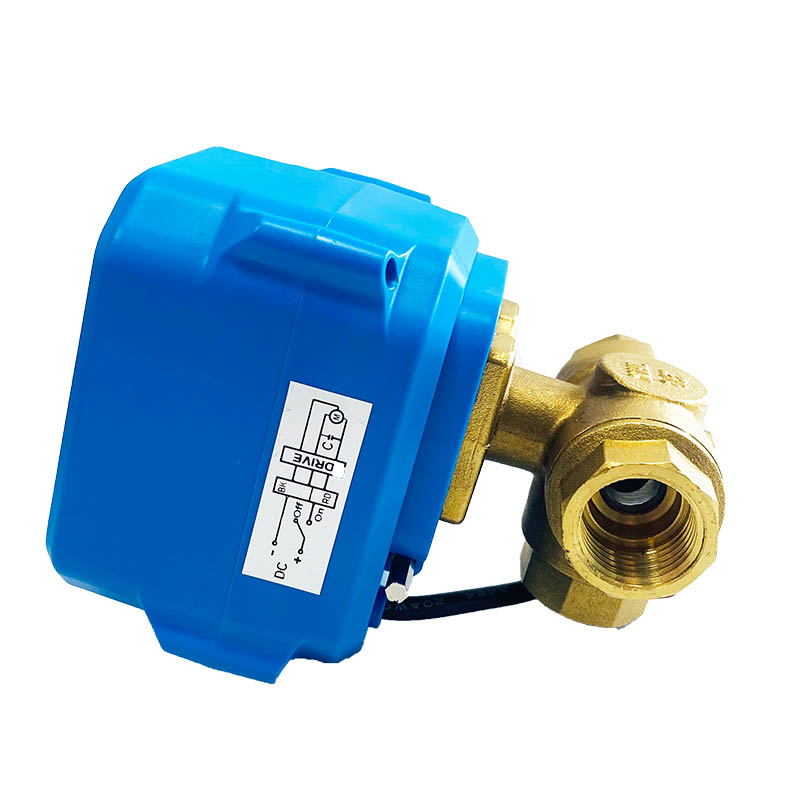

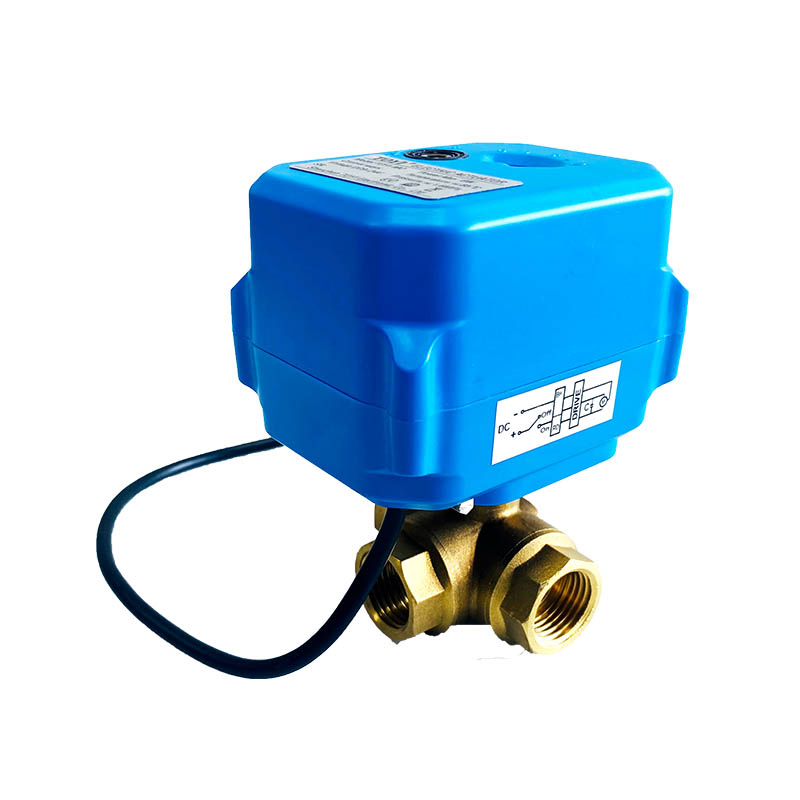

1 inch motorized ball valve with timer
- Body Material: Brass/ Bronze
- Max. Pressure: 10bar
- Temperature: 0℃ to 90℃
- Flow Medium: Water, air, gas, oil, etc
- Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
- Open/Close Times: ≤5S
1 inch motorized ball valve with timer
The min electric ball valve is compact in design, small in size and multi-functional. The electric actuator drives the valve to open or close under the driving of AC and DC power supply and signal control, and automatically closes after power failure.
We can customize according to customer needs. Micro electric ball valves can be universal, spring-return (fail-safe), timer-controlled and regulating.
Min electric brass ball valve provides you with a value-for-money fluid solution. Its advantages are low starting torque, easy operation, small size, saving installation space and long service life. Fine and small electric ball valves can be widely used in automation equipment such as air conditioning systems, fire protection systems, and analytical instruments.
| Technical Project | The Main Parameters | Technical Project | The Main Parameter |
| Nominal ressure | 1.0MPa | Closing different pressure | 1.0MPa |
| Medium | hot and cold water, ethylene glycol aqueous solution within 60% |
Medium temperature | 1°C ~ 95°C (liquid state) |
| Control signal | ON/OFF. Special can be customized | Power supply | AC220,50/60HZ , AC24V, AC110-265 (general voltage can be customized) DC24V, (DC6-30 can be customized) |
| Power consumption | 10W | Running time | 7~10 seconds (fast and customizable) |
| Stroke | angular stroke 90° (180° can be customized) |
Torque | 8Nm |
| Structural form | two-way, three-way side outlet L-shaped 10Nm and T-shaped |
Body material | Brass /Bronze |
| Protection class | IP65 | Sealing | EPDM |
